Takhte-Tavous Commercial
​​​​​​​
Information:

Structural Design: Dr. Ali Razavi
Location: Motahari St, Tehran

Architect: Dr. Alireza Taghaboni

Structural Detail:
- 15 Stories
- 6 Basement Floors
- Lot Area: 630 m²
- Built-up Area: 6850 m²
- Lateral load resisting system: Steel Intermediate moment frame
- Diaphragm System: Composite slab
Large cantilevers

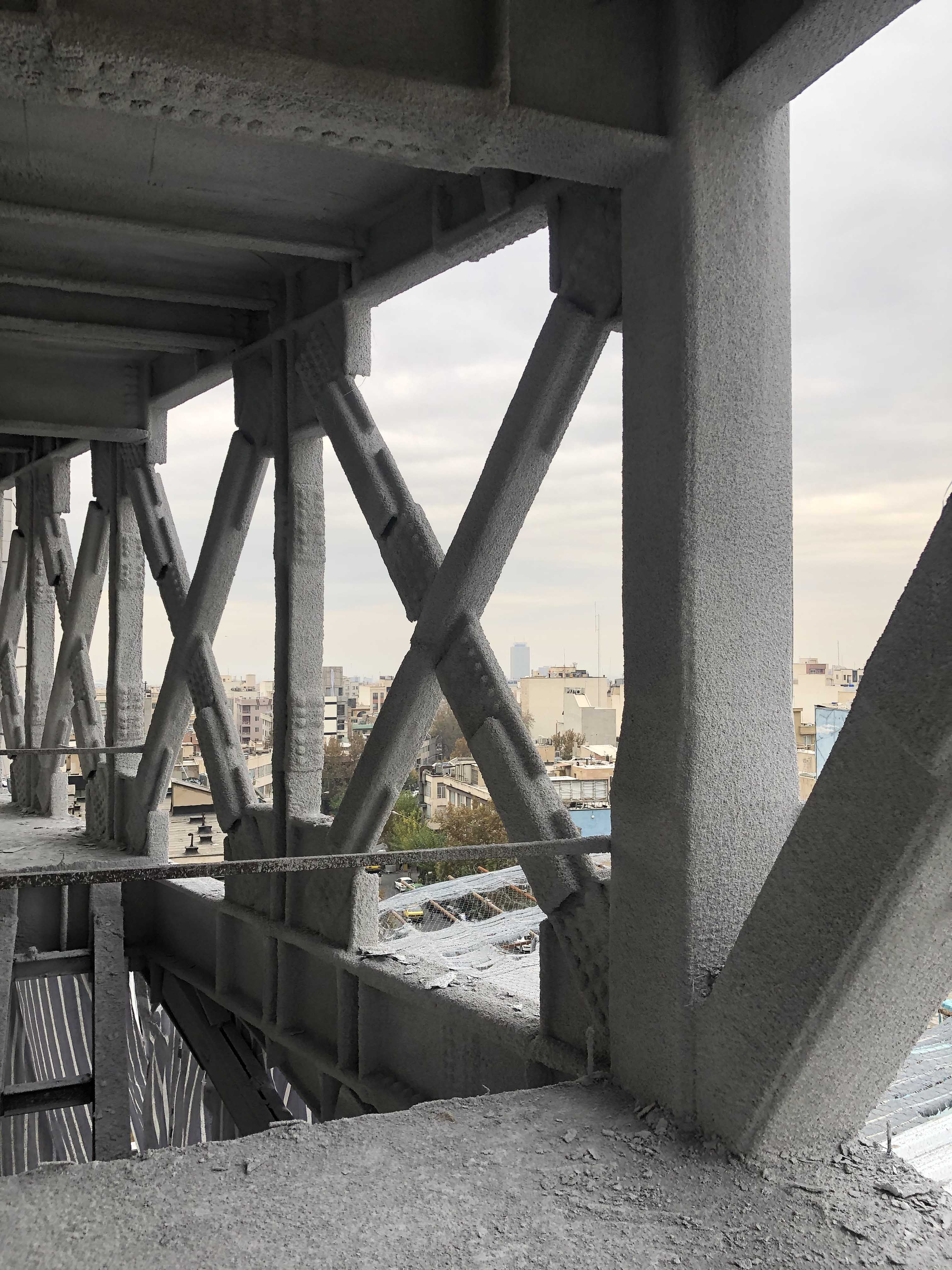

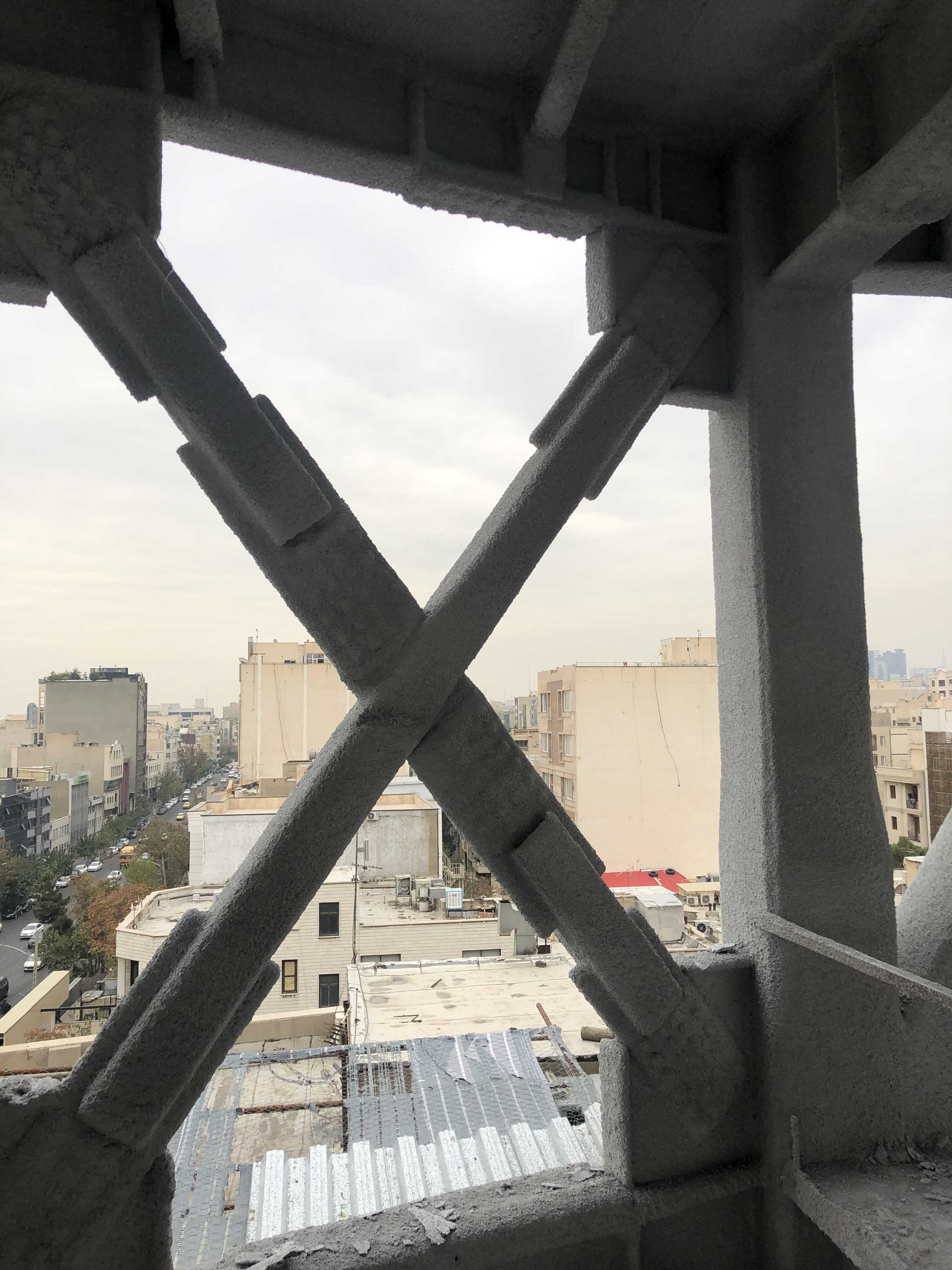

Steel shear wall
Truss between floors
- Staircase landing between floors
-
Inclined column
- Column size

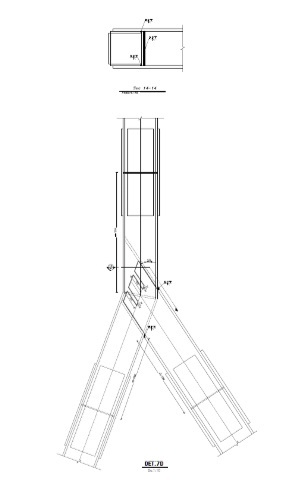

Special connection
- Integrated and cross-disciplinary engineering designs​​​​​​​​​​​​​​

What makes this Project special?

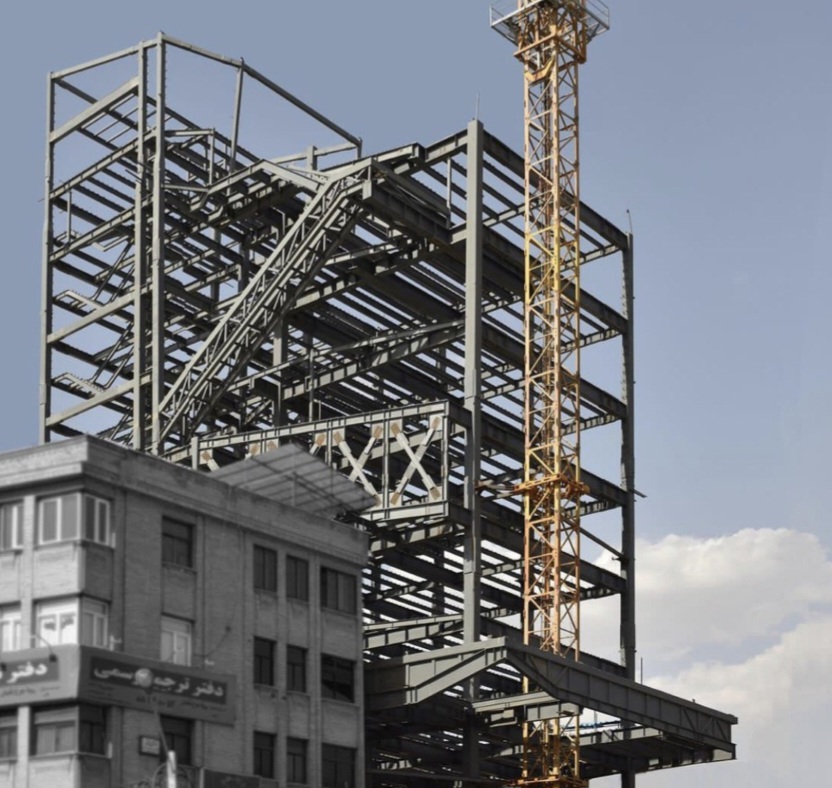

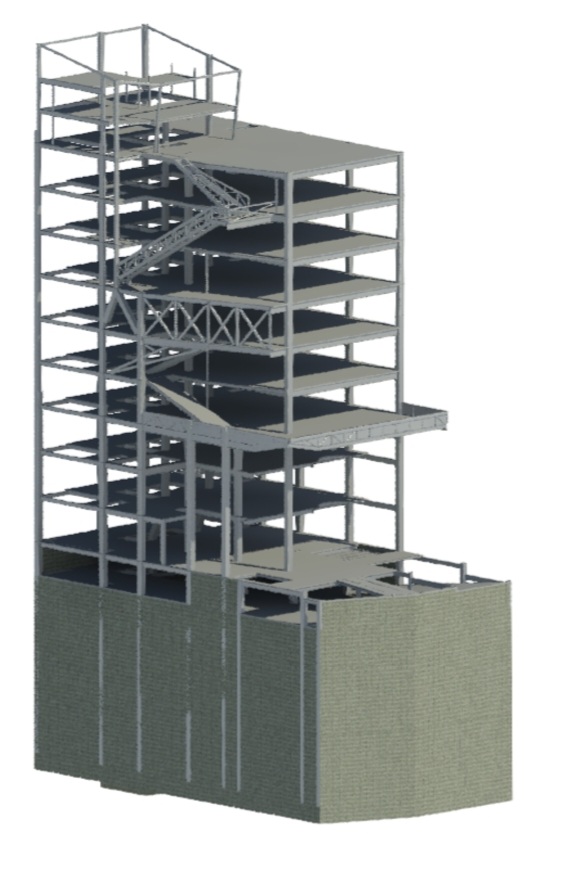

The 'Takhte-Tavous' project is located on a 630-square-meter land at the intersection of Motahari Street and Sohravardi Street, one of Tehran's bustling areas. The project consists of six basement floors and 15 above-ground floors, with a commercial-office function. The lateral load resisting system of the structure incorporates steel Intermediate moment frame. The diaphragm system utilizes composite slab.  Due to the unique architecture of the project, notable structural features include large cantilevers braced with steel shear walls, truss between floors, Inclined column, two-branched columns, etc.
